Electro Magnetic Chucks
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Shape | Rectangular, Round |
| Power Source | Electric |
| Surface | Polished |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Uses
Reduction in cost of operation, Saves time, Accurate and precise
Application
Used in place of clamps, Industries with milling, grinding, lathe machine etc
Features
Accurate Dimension, Precise Design
Details :
- Electromagnetic rectangular chucks are manufactured in standard pole, close pole, fine pole and micro fine pole for different applications.
- How to define model - For e.g. electromagnetic rectangular chuck for 450X200X105mm micro fine pole will be mentioned as : EMMFP-4520

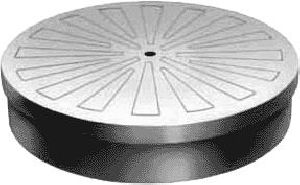

- Electromagnetic round magnetic chuck are manufactured in radial pole and concentric pole.
- For concentric pole use code ‘ERCO’ along with model no. And for radial pole use code ‘ERRD’ along with model no.
- For example:- if electromagnetic chuck of dia. 10 inches radial pole will be mentioned as : ERRD-25.
- Small size are manufactured in permanent magnet but small size can be manufactured on request.
- Special size orders are also undertaken.
Rectangular Electromagnetic Chuck
| Serial No. | Length (in mm) | Width (in mm) | Height (in mm) |
| 4520 | 450 | 200 | 105 |
| 5020 | 500 | 200 | 105 |
| 6020 | 600 | 200 | 105 |
| 8020 | 800 | 200 | 105 |
| 5025 | 500 | 250 | 105 |
| 6025 | 600 | 250 | 105 |
| 8025 | 800 | 250 | 105 |
| 10025 | 1000 | 250 | 105 |
| 12025 | 1200 | 250 | 105 |
| 6030 | 600 | 300 | 105 |
| 7530 | 750 | 300 | 105 |
| 8030 | 800 | 300 | 105 |
| 8530 | 850 | 300 | 105 |
| 10030 | 1000 | 300 | 105 |
| 12030 | 1200 | 300 | 105 |
| 15030 | 1500 | 300 | 105 |
| 9035 | 900 | 350 | 105 |
| 10035 | 1000 | 350 | 105 |
| 12035 | 1200 | 350 | 105 |
| 15035 | 1500 | 350 | 105 |
| 9040 | 900 | 400 | 105 |
| 10040 | 1000 | 400 | 105 |
| 12040 | 1200 | 400 | 105 |
| 15040 | 1500 | 400 | 105 |
| 10045 | 1000 | 450 | 105 |
| 12045 | 1200 | 450 | 105 |
| 15045 | 1500 | 450 | 105 |
| 10050 | 1000 | 500 | 105 |
| 12050 | 1200 | 500 | 105 |
| 15050 | 1500 | 500 | 105 |
| Type of pole | Model | Pole size (in mm) | |
| Standard pole | EMSP | 15 | |
| Close pole | EMCP | 11 | |
| Fine pole | EMFP | 9 | |
| Micro fine pole | EMMFP | 4 | |
Round Electromagnetic Chuck
| Model | Diameter (inches) | Height |
| 15 | 6 | 85 |
| 20 | 8 | 85 |
| 25 | 10 | 85 |
| 30 | 12 | 95 |
| 35 | 14 | 95 |
| 40 | 16 | 95 |
| 45 | 18 | 95 |
| 50 | 20 | 105 |
| 60 | 24 | 105 |
| 75 | 30 | 105 |
| 80 | 32 | 105 |
| 90 | 36 | 105 |
